A video demonstration was in order. Power on the antenna was increased to maximum so the tag would read as quickly and easily as possible. In this case, the power was set to 27dBm which is still a measurement which displays during the startup sequence of the machine. It may be convenient to shorten the startup sequence in the future.
Wires were run between the garage door opener's switch contacts and a relay connected to the Arduino and scanner. The dry contacts of the relay behave just like any mechanical switch so the garage door opener will not know if a switch is pressed or a relay is closed.
A short video was taken outdoors. It was a hot day but that did not stop airplanes from flying right over my house. The video was seventy seconds long, just enough time to demonstrate the use of RFID to open a garage door.
The rest of the posts for this project have been arranged by date.
First time here?
Completed projects from year 1.
Completed projects from year 2.
Completed projects from year 3.
Completed projects from year 4.
Disclaimer for http://24hourengineer.blogspot.com/ and http://24hourengineer.com/
This disclaimer must be intact and whole. This disclaimer must be included if a project is distributed.
All information in this blog, or linked by this blog, is not to be taken as advice or solicitation. Anyone attempting to replicate, in whole or in part, is responsible for the outcome and procedure. Any loss of functionality, money, property or similar, is the responsibility of those involved in the replication.
All digital communication regarding the email address 24hourengineer@gmail.com becomes the intellectual property of Brian McEvoy. Any information contained within these messages may be distributed or retained at the discretion of Brian McEvoy. Any email sent to this address, or any email account owned by Brian McEvoy, cannot be used to claim property or assets.
Comments to the blog may be utilized or erased at the discretion of the owner. No one posting may claim property or assets based on their post.
This blog, including pictures and text, is copyright to Brian McEvoy.
2018-07-12

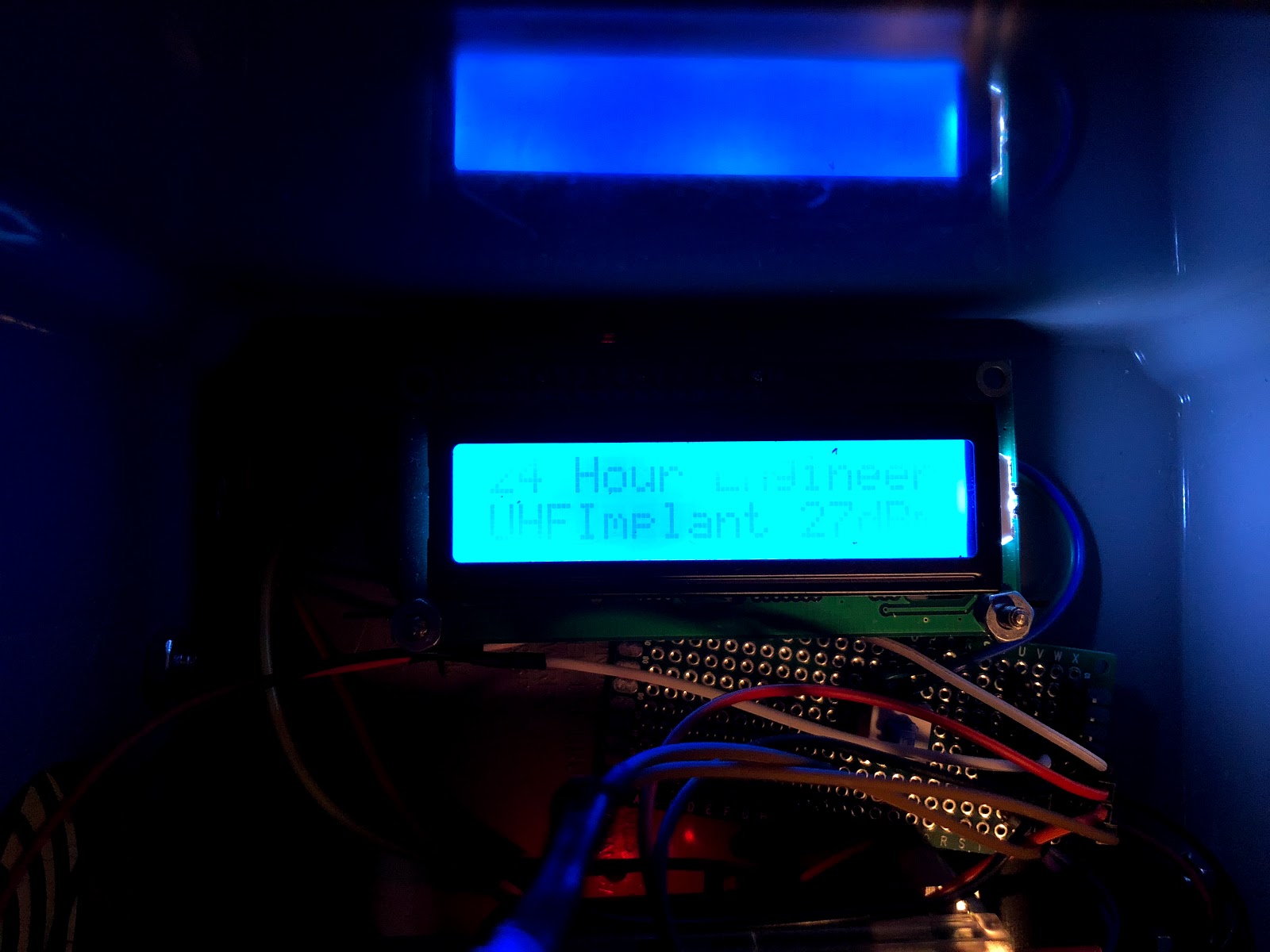

Screen showing power output
