Data wires were run from the boards yesterday so it was time to add wires from the spare IO points on circuit boards with only four switches. Each IO expander chip can read eight or sixteen inputs and the four-switch boards have 8-point IO expanders so a ground and four wires were run to a simple board which hosts four switches but does not have any circuitry for an IO expander. These simple boards are basically breakout boards for the switches and could easily mount keyswitches to any project.
Auxiliary wires were added to the circuit board at the top of the keyboard. This board was not intended to have any keys when the keyboard was designed so the wires are being left alone at this point. There are several choices of which kind of board to attach. Like the previous aux board, a 2x2 board could be mounted near the top, or there are two configurations of 1x2 boards and a standard protoboard could also be used to mount any kind of hardware.
A sketch was made which showed which boards on this side of the keyboard would receive which address. Notice that the angled board in the lower right corner has no address, this is because there is no IO expander on that board and there are no boards shown next to the top-mounted board, 1, for the same reason.
ModuKey on GitHub
The rest of the posts for this project have been arranged by date.
First time here?
Completed projects from year 1
Completed projects from year 2
Completed projects from year 3
Completed projects from year 4
Completed projects from year 5
Disclaimer for http://24hourengineer.blogspot.com/
This disclaimer must be intact and whole. This disclaimer must be included if a project is distributed.
All information on this blog, or linked by this blog, is not to be taken as advice or solicitation. Anyone attempting to replicate, in whole or in part, is responsible for the outcome and procedure. Any loss of functionality, money, property or similar, is the responsibility of those involved in the replication.
All digital communication regarding the email address 24hourengineer@gmail.com becomes the intellectual property of Brian McEvoy. Any information contained within these messages may be distributed or retained at the discretion of Brian McEvoy. Any email sent to this address, or any email account owned by Brian McEvoy, cannot be used to claim property or assets.
Comments to the blog may be utilized or erased at the discretion of the owner. No one posting may claim property or assets based on their post.
This blog, including pictures and text, is copyright to Brian McEvoy.
2018-10-16
Shrink wrap tubing around aux board wires

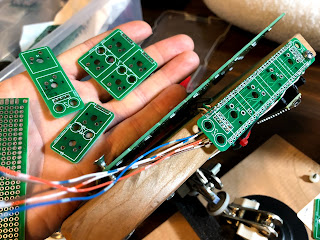

Auxiliary wires were added to the circuit board at the top of the keyboard. This board was not intended to have any keys when the keyboard was designed so the wires are being left alone at this point. There are several choices of which kind of board to attach. Like the previous aux board, a 2x2 board could be mounted near the top, or there are two configurations of 1x2 boards and a standard protoboard could also be used to mount any kind of hardware.
Aux wires and board possibilities
A sketch was made which showed which boards on this side of the keyboard would receive which address. Notice that the angled board in the lower right corner has no address, this is because there is no IO expander on that board and there are no boards shown next to the top-mounted board, 1, for the same reason.
Address numbering for boards
