The faceplate was serviceable, so the electrical assembly could begin. Header pins had to be installed on the MIDI shield and Arduino Uno clone. Two pin pairs on the shield had to be tied together to run it in MIDI mode instead of a sound recorder.
There was also an amplifier on the MIDI shield capable of driving a couple of low-wattage speakers. I may never use them, but I installed the screw terminals for them, which barely cleared the power adapter from the Arduino.
The rest of the components installed with #6 bolts and nuts, and in the case of the potentiometers, a single nut-bolt combo with a fender washer between them.
A slew of wires was installed on the bottom of the shield and run to the components. One I/O pin was run to each tab on the keyboard in the hopes of creating an algorithm that would read each key independently. This is a solved problem, but I have not looked at the solution, and I will try to figure it out myself.
The rest of the posts for this project have been arranged by date.
First time here?
Completed projects from year 1
Completed projects from year 2
Completed projects from year 3
Completed projects from year 4
Completed projects from year 5
Completed projects from year 6
Disclaimer for http://24hourengineer.blogspot.com and 24HourEngineer.com
This disclaimer must be intact and whole. This disclaimer must be included if a project is distributed.
All information in this blog, or linked by this blog, is not to be taken as advice or solicitation. Anyone attempting to replicate, in whole or in part, is responsible for the outcome and procedure. Any loss of functionality, money, property, or similar, is the responsibility of those involved in the replication.
All digital communication regarding the email address 24hourengineer@gmail.com becomes the intellectual property of Brian McEvoy. Any information contained within these messages may be distributed or retained at the discretion of Brian McEvoy. Any email sent to this address, or any email account owned by Brian McEvoy, cannot be used to claim property or assets.
Comments to the blog may be utilized or erased at the discretion of the owner. No one posting may claim property or assets based on their post.
This blog, including pictures and text, is copyright to Brian McEvoy.
2019-10-16
Music shield and Arduino with soldered headers
There was also an amplifier on the MIDI shield capable of driving a couple of low-wattage speakers. I may never use them, but I installed the screw terminals for them, which barely cleared the power adapter from the Arduino.
Side view with speaker ports
The rest of the components installed with #6 bolts and nuts, and in the case of the potentiometers, a single nut-bolt combo with a fender washer between them.
EWC_Presenter bottom side

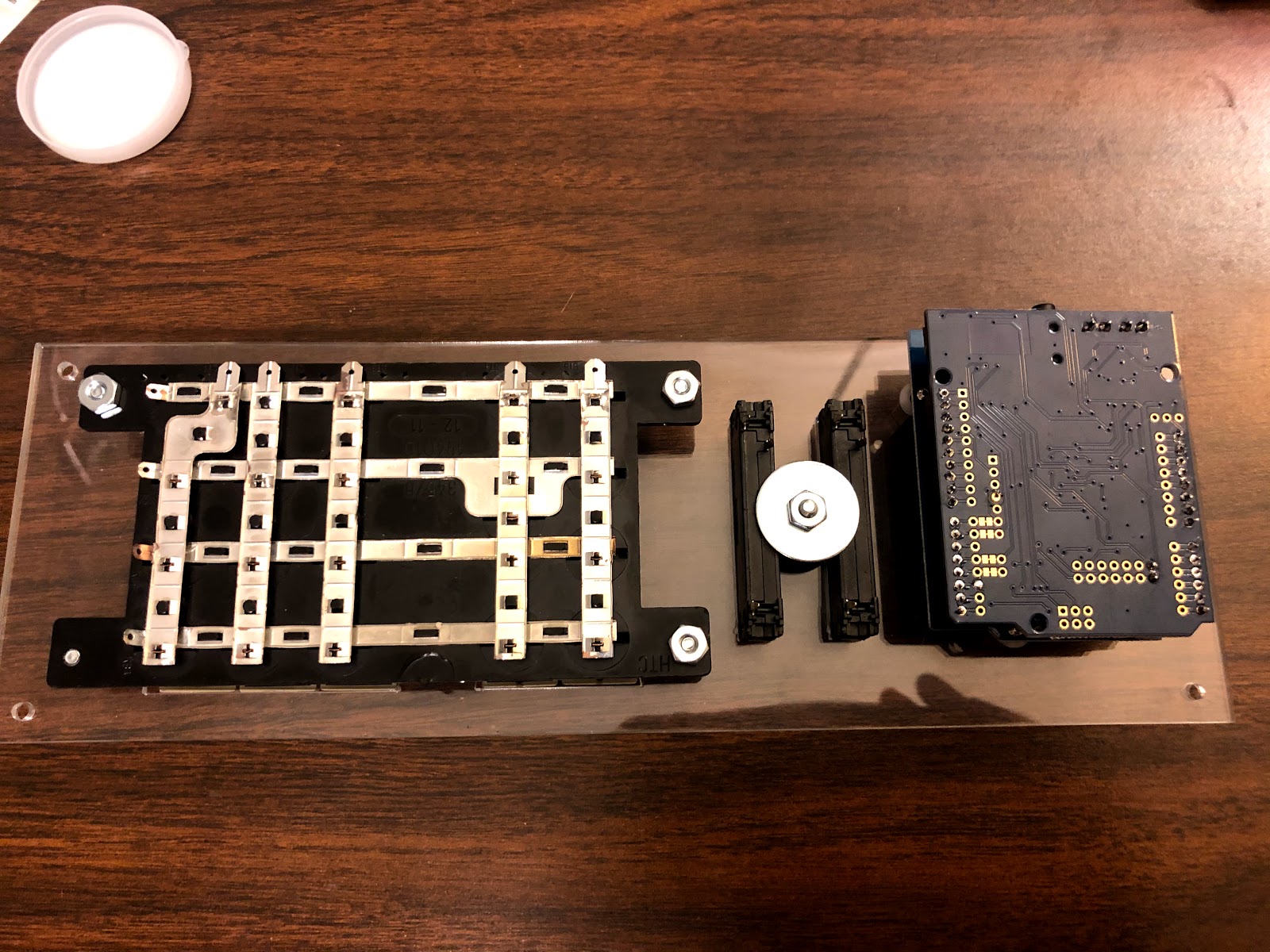

A slew of wires was installed on the bottom of the shield and run to the components. One I/O pin was run to each tab on the keyboard in the hopes of creating an algorithm that would read each key independently. This is a solved problem, but I have not looked at the solution, and I will try to figure it out myself.
