Sending serial command
Sending serial data is a practical way to automate the intensity setting, and the default method is the onboard potentiometer. Still, I may want to allow users access to the intensity without a computer or the board itself. I added a mode that uses the accessory port to read another potentiometer capable of setting the intensity.
Remote slider
In the same way that I wanted folks to change the intensity, I wanted to provide a way to noodle without access to the core board. Another input on the accessory port was utilized as a remote button. This pin sets up as a sinking input, but it will recognize a rising edge or falling edge based on the startup state.
(0:11) External trigger on a touch-sensitive pad
I capitalized on the universal input recognition code of the noodle button when I built a remote demonstration module. In this enclosure, I used a mechanical switch, whereas the first experiment used a touch-sensitive board. The touch board is active-high, but the switch was active-low, and I did not need to change the code for this. A potentiometer joined the switch to control intensity.
In addition to getting everything working, and even deleting old bugs, I finished this project and consider it a success.
Complete hardware with external control box
My next project will be automating a children's glockenspiel toy. This is not the first time I've tried to automate an instrument, and it's not the first time I've tried to automate a glockenspiel. At least I don't call it a xylophone anymore. This time, my plan was to suspend a wooden bead across a bow and swing it with a hobby servo. I drafted an example after brainstorming several designs. The model was meant to be made of acrylic and cut on a laser cutter.

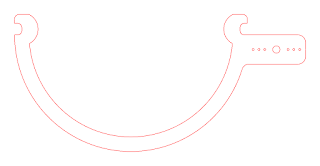

Draft of mallet holder
