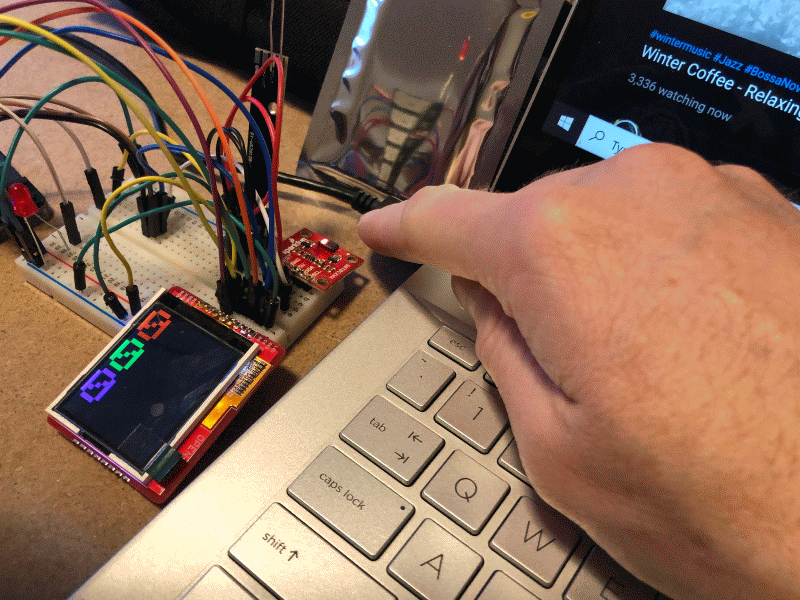

I changed some of the hardware to match what will eventually go into the badge, but it was similar enough to what I was working with that I did not need any revisions to the code. The change allowed me to access the pins used in SPI communication so I could talk to a color screen. After I got a demo program running, I was able to print color-coded values based on the sensor reading.
I started a pin assignment list to help with the schematic layout, and during that time, I remembered that I wanted to add buttons. I wanted the buttons to act like a gamepad, so a couple of switches to one side would act like gamepad buttons, while four others would serve as the directional pad. I wanted to add a disc above the buttons that would look and act like a D-pad but one that can attach through a hole in the PCB. The control cap may end up being as simple as a screw passing through a standoff, but I will probably need a prototype board before I can experiment.
The pin assignment list quickly became unruly. I kept forgetting mental notes about why particular pins needed to go one place, and couldn't go to another, only to I forgot which pins I was supposed to remember. Finally, I created a spreadsheet to arrange assignments with notes and colors fluidly. I used this day to figure out the necessary pins for the SAO ports.
I started the schematic with a footprint for the ESP-WROOM-32 module, a header for the screen, and six buttons. The D-pad described above will use 6mm*6mm tactile switches, and the game buttons will use 12mm*12mm*7.3mm buttons with caps. All of these parts were wildly inexpensive.
The schematic kept growing with the passive parts. SAO ports were a couple of GPIO points, 3.3V power, and I2C port pins. I decided to start with four copies, two for the face, and two more for the sides, which will require right-angle header pins. At my discretion, I added an analog output from a DAC pin for audio, even though it may never get used.
I purposely started with undemanding devices that had standard footprints and did not need much more than a connection directly to the microcontroller. The buttons had pull-up resistors, the SAO ports had protection resistors, but little passives were simple. The LEDs needed a little research to see what kind of filtering they required. I placed a small capacitor for each light and a filtering resistor on the data line. The power circuit will be more complex, and the communication should be the worst.
