The stun guns had short wires coming from their high voltage generators, and they ran right to the electrodes on the front of the apparatus. Extending high voltage wires was tricky because a gap in the insulation could lead to arcing inside the device. I used some heat shrink tubing with a ring of solder on the inside. When exposed to heat, like a heat gun or lighter, the solder would melt to secure inserted wires while shrinking the insulation tube.
When I tested the stun gun, there was arcing where I wanted along the blade. One part of this test was to ensure that electricity would not flow through the metal handle and affect the user. Fortunately, this was not the case.
Wiring between the stun gun and blade was a temporary matter. I bunched up the long conductors and wrapped the bare ends with a rubber band. At this point, there was no point securing the wires to the aluminum tape with solder or piercing.
The stun guns have a charging circuit built into the device, and this model had extendable prongs for a US power socket. It already looked ridiculous, but when I plugged it into the wall, I had to take a picture because that is something no one would understand without some context.
The rest of the posts for this project have been arranged by date.
First time here?
Completed projects from year 1
Completed projects from year 2
Completed projects from year 3
Completed projects from year 4
Completed projects from year 5
Completed projects from year 6
Disclaimer for http://24hourengineer.blogspot.com and 24HourEngineer.com
This disclaimer must be intact and whole. This disclaimer must be included if a project is distributed.
All information in this blog, or linked by this blog, is not to be taken as advice or solicitation. Anyone attempting to replicate, in whole or in part, is responsible for the outcome and procedure. Any loss of functionality, money, property, or similar, is the responsibility of those involved in the replication.
All digital communication regarding the email address 24hourengineer@gmail.com becomes the intellectual property of Brian McEvoy. Any information contained within these messages may be distributed or retained at the discretion of Brian McEvoy. Any email sent to this address, or any email account owned by Brian McEvoy, cannot be used to claim property or assets.
Comments to the blog may be utilized or erased at the discretion of the owner. No one posting may claim property or assets based on their post.
This blog, including pictures and text, is copyright to Brian McEvoy.
2020-02-14
Extended high-voltage wires
When I tested the stun gun, there was arcing where I wanted along the blade. One part of this test was to ensure that electricity would not flow through the metal handle and affect the user. Fortunately, this was not the case.
Spark at the tip
Spark near the handle

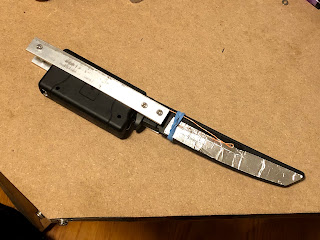

Wiring between the stun gun and blade was a temporary matter. I bunched up the long conductors and wrapped the bare ends with a rubber band. At this point, there was no point securing the wires to the aluminum tape with solder or piercing.
