I could make metal bars without trouble, but they defeat the purpose of the new knives if they hurt people by being angular metal, so I wanted to protect the corners, even if they were round. On paper, I sketched a design to cover the forward edges of the bars.
Instead of making the backside square, I made a flat-top cone with a cavity for the rounded bar. Even though I didn't make the end of the bar, a perfect semi-circle, the guard fit neatly, and the plastic came flush with the bar.
The first print was too large for the knife blade, so I shrunk the base of the cone, expanded the hole in the middle so it would fit a hexagon spacer.
The models printed in less than an hour, and I could test the second iteration without delay. There was a small gap between the blade and guard that I didn't like, but it would protect the user and anyone else in the ring.
GitHub repo for EleKSco.
The rest of the posts for this project have been arranged by date.
First time here?
Completed projects from year 1
Completed projects from year 2
Completed projects from year 3
Completed projects from year 4
Completed projects from year 5
Completed projects from year 6
Disclaimer for http://24hourengineer.blogspot.com and 24HourEngineer.com
This disclaimer must be intact and whole. This disclaimer must be included if a project is distributed.
All information in this blog, or linked by this blog, is not to be taken as advice or solicitation. Anyone attempting to replicate, in whole or in part, is responsible for the outcome and procedure. Any loss of functionality, money, property, or similar, is the responsibility of those involved in the replication.
All digital communication regarding the email address 24hourengineer@gmail.com becomes the intellectual property of Brian McEvoy. Any information contained within these messages may be distributed or retained at the discretion of Brian McEvoy. Any email sent to this address, or any email account owned by Brian McEvoy, cannot be used to claim property or assets.
Comments to the blog may be utilized or erased at the discretion of the owner. No one posting may claim property or assets based on their post.
This blog, including pictures and text, is copyright to Brian McEvoy.
2020-02-20
Sketch for model
Instead of making the backside square, I made a flat-top cone with a cavity for the rounded bar. Even though I didn't make the end of the bar, a perfect semi-circle, the guard fit neatly, and the plastic came flush with the bar.
First print

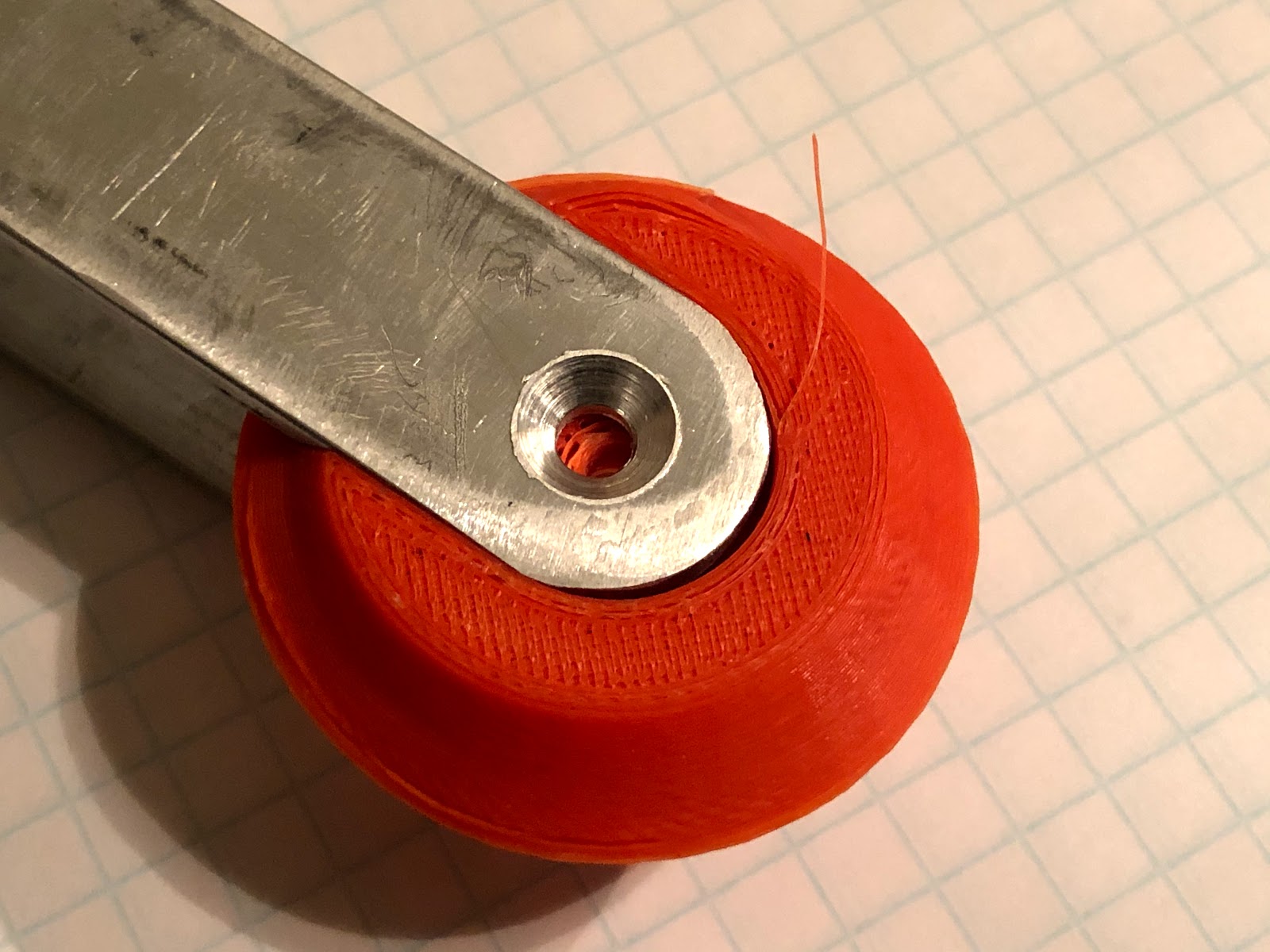

The first print was too large for the knife blade, so I shrunk the base of the cone, expanded the hole in the middle so it would fit a hexagon spacer.
