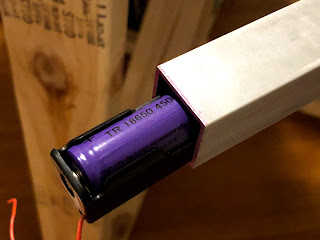

All the work with clamping aluminum bar stock seemed silly when I remembered that hardware stores sold square aluminum tubing. The inside dimensions were 1/16" (1.5mm) more on each side.
12mm switches are meant for PCB mounting, and I needed to access it from inside a square tube. I designed a couple of parts that would fit inside the aluminum and hold the switch. The key was that they could fit inside the handle, but when I fastened them together with a bolt and nut, they would expand outward and seat themselves against the inside diameter and hold securely. Each side had to provide enough clearance to move it in place while holding the switch and its cap, so it had to expand quite a bit.
The back of the square tube needed something to keep the corners from scraping people's skin, so I sketched an idea for a couple of hemispheres that would fit inside the handle and accept a hexagonal spacer. I never modeled this because I forgot that a half-circle would not cover the corners unless it extended past the square on the flats.
