2020-05-18 (M) Touch Atari Punk Console APCTouch COMPLETED

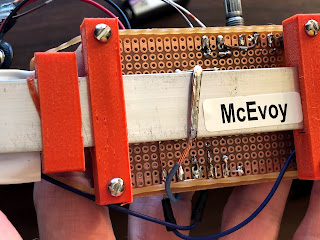

The mounting bars came out of the printer well, but one of the dimensions was a little off because I rounded their distance when I should have used more precision. I could not get away without standoffs because the volume potentiometer was too close to one side, and the leads interfered with the bracket. I was still able to get the board mounted despite the errors.

Base prints with standoffs

I needed electrical connections between the console and conductors. For the ribbons, I soldered a wire to copper tape and stuck it on the underside. To connect the metal bar, I wrapped a chunk of bare wire around it and soldered up the joining area. All the connections seemed solid enough.

Copper tape for resistor electrode

Positive lead on aluminum bar

I recorded a minute-long video where I talked about the APCTouch and demonstrated it on my kitchen floor. There is a strong possibility that one of the timers failed because I could not get consistent sound from one side. In retrospect, I should have installed chip sockets so I could swap them out at will.

(0:53) Video demonstration
