The last charging board I tried didn't work because it solely generated voltage and current for charging a battery, and the Arduino couldn't run off the battery's voltage. I uncoupled it from the controller so I could focus on a different board. This new charging board would power up the battery and then generate 5V from the connected battery. I hooked up the Arduino to the 5V output, and it worked, but when I connected a charger, it immediately cut me off, which was the case with most chargers unless they explicitly have charge-through capabilities.

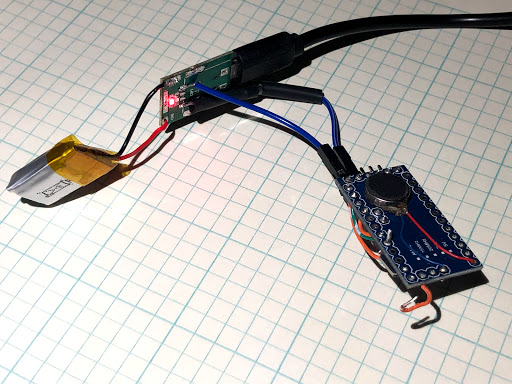

I removed the USB receptacle and checked memorized the 5V output then I looked at where the incoming 5V power was. I soldered the anode end of a diode to each source. I joined the cathode end of the two components and routed their combined signal to the Arduino. This time, when I plugged in a USB cable to the charging port, the controller didn't lose power. I tried a couple of times, and the supply was consistent.
