I softened my plastic brace with a heat gun over a cardboard tube approximately the same diameter as my forearm. When it cooled, I placed it on my arm, which fit nicely. Unfortunately, the placement was all wrong when I tried to connect the white plastic gauntlet.
Heat gun on Kydex
I added buckles and elastic straps that went all around my arm. I added loops of magnet wire and held them in place with spiral wrap while I glued the conductors. It'll take seventy-two hours to dry.
Straps and wires on the hoop

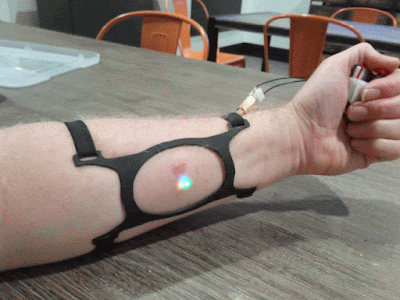

The straps are time-consuming to sew by hand, so I redesigned the loop holder to use strings. I kept the dimensions, although I'm not trying to interface with the plastic gauntlet, so I could have placed the holes anywhere.
This one uses elastic strings
I rewired the inverter to run a headphone socket and put plugs on the included coil and my brace's wires. Everything is wearable, but I want a way to activate the inverter by turning my arm.
The coil works
Another look I wanted was a sleeve with a hole over the implanted LEDs. I made a circle of glue on a sunblocking sleeve and cut it out. The hole was too big, but I can make another attempt.
A cut up sleeve

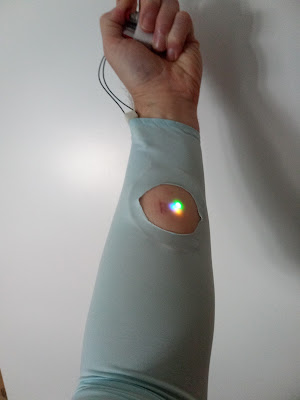

I cut up a second sleeve, but I was more careful. The hole was torpedo-shaped, so it would be almost circular after my arm stretched it out. I pushed the exciter coil under the fabric and lit up my arm.
The coil hides under the sleeve
