I still need to finish coding the calibration routine, but I wanted to look at the hardware. I dug out a reed switch module, a hall effect module, and some bare reed switches. The module wasn't necessary for the reed switch, which is a discrete input, but it provided a light, which was helpful for testing. The hall effect module was convenient because it lit an LED whenever the field strength exceeded a value I set with the onboard potentiometer.
I used reed switches before, and they have a peculiar trait where they lose connection when they're in the middle of a magnet's field. I haven't researched this, but I suspect it is a phenomenon where the internal reeds become identically magnetized and repel each other. I tested each module around the rim motor's rim, and I could sense several magnets pass during each rotation.

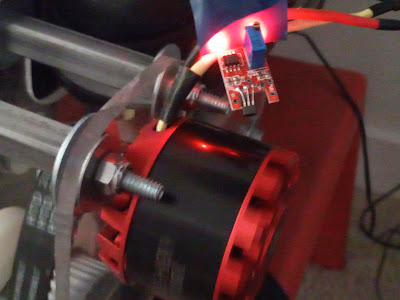

The light on the right is the digital signal indicator
I ran my calibration program while connected to each module, and data flew by in the graphing window. I suspect I captured motor rotations faster than I could transmit the data, even though the Arduino Micro has a native USB and a high baud rate. The red lines on the graph filled the window in less than five seconds.
So much data
