The biggest problem with bending 12AWG copper wire into a frame was that I would always get the dimensions too big, then pinch the ends together and end up with a needlessly large frame. I sketched a bending jig, cut it on the laser, and formed a couple of frames. The idea was to make a U-shaped copper frame, then solder brass nuts to the ends to hold my tensioning bolts. The first was longer than necessary, but I kept it in case the short one did not work out.
Long and short copper frame bending jigs
I used M2.5 hardware because I had the materials but wanted to use the more common M3. I soldered standard nuts to the short frame and coupler nuts to the long version. I worried the short version would not have enough tension to hold the bolts in place, so the coupler nuts were a good experiment. The standard nuts were sloppy, but I added a nylon jam nut to rigidify everything.

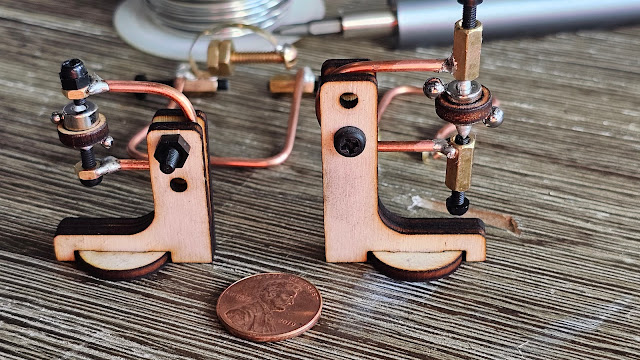

I drafted a simple stand to hold the compasses and cut them out of plywood. They were not part of the compass, but they made them easier to hold and sit on a table. On the left, I have the short frame with standard nuts, and on the right, I have the long frame with coupler nuts. USA penny for scale.
Compasses in wooden stands
GitHub files for GrinderCompass
