2024-04-06 (Sa) SubdermalWirelessLEDs Revised drawing and router planning

I thought about the best way to cut a brace larger than my CNC's table. The CNC can accommodate any length by incrementally moving the build material through and fastening it at intervals. I found the mounting hole spacing for my spoil board and measured the bolt diameter because the M6 bolts were only 5.75mm. I added a corresponding array of holes to the drawing.

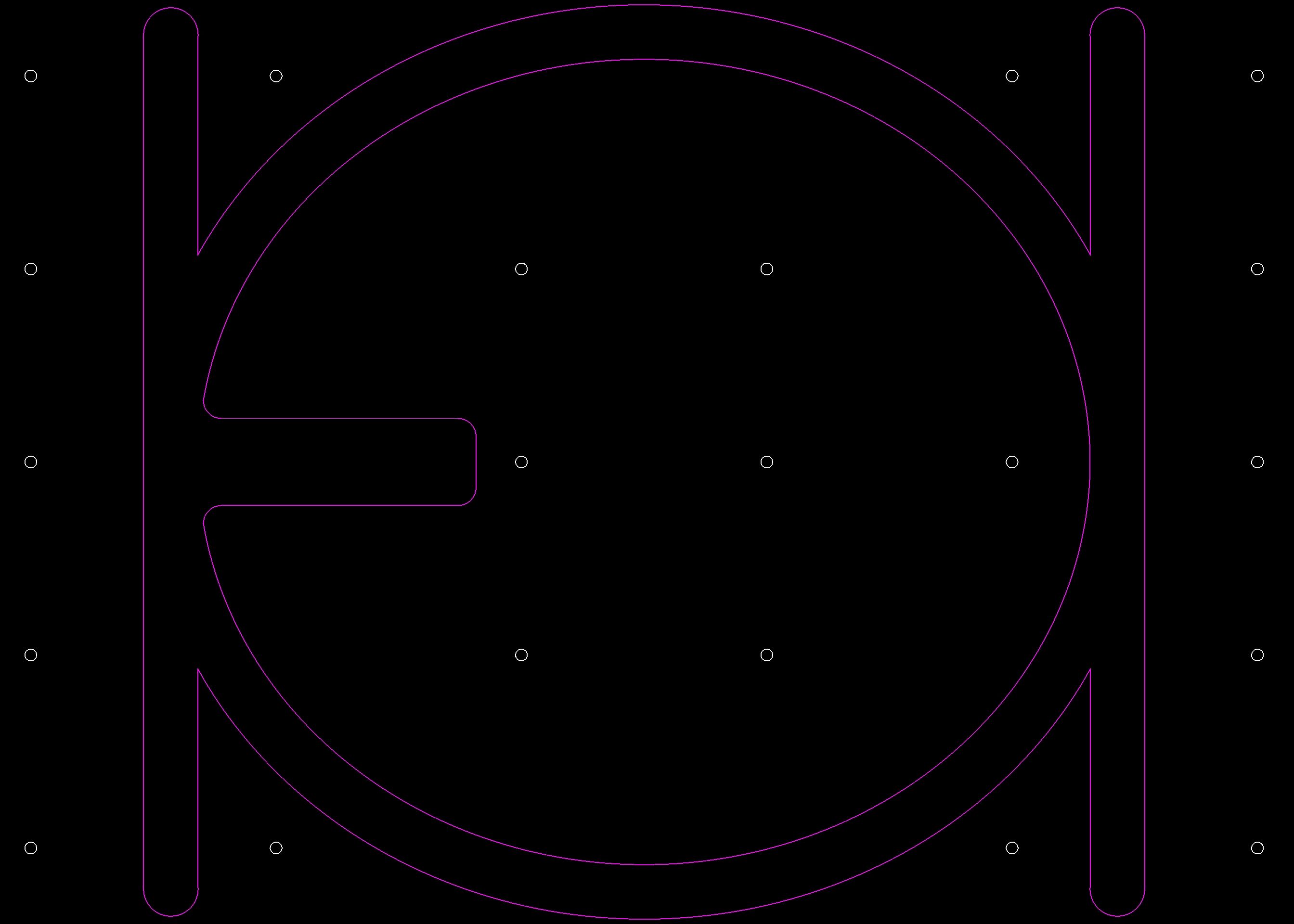

Holes to match the spoilboard mounting points
