2024-06-23 (Su) GrinderCompassMKIII REV7 modeling

The rounded cube model printed well, and it was sturdy. I shortened it because there was excessive space at the bottom and added windows. The holes in the side make it easier to troubleshoot and make adjustments without disassembling. I added four holes to the bottom at different distances from the center to add bolts through the bottom. One of them should intersect the lower bead on the magnet spinner.

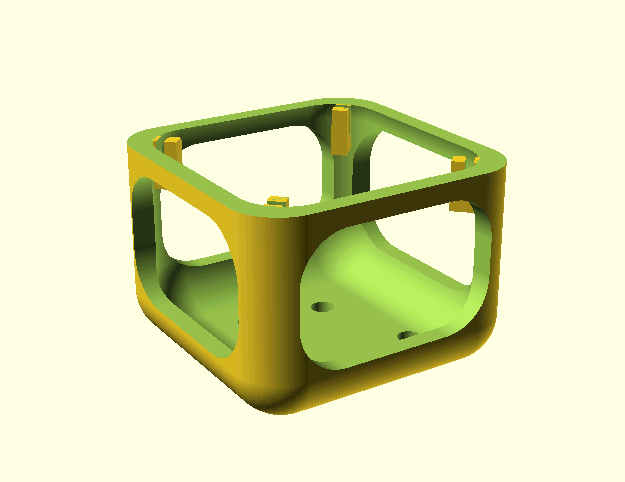

REV7 skeletal exterior cage
