I finally corrected the magnet size by measuring it a second time. I made extra space where the soldered wire would wrap so the solder blob would not interfere. Lastly, I sunk the fastening hardware so the top and bottom would be flat.
I printed the REV20 spinner and installed the brass bolts and wire loops. The magnets fit right into their spots, and I sandwiched the halves together and added nuts to secure everything.
I tried hand-bending long wire loops that would reach from the spinner's center to an axle holder with wire guides at the top. It was too difficult to shape the wires correctly by hand, so I stopped before something else broke.
I made a wire-bending jig to facilitate the next steps. If it works, I can add more advanced features in subsequent iterations.
The wire-bending jig worked well enough to make a cage-like brass structure, but the rods were still too stiff to create significant flexibility between the hub and rim.
I ordered flexible printer resin and programmed spokes to go between the hub and rim of the spinner. I can quickly change the number, width, and thickness. Each time I run the printer, I can test three configurations and find one that is tough and flexible.
The rest of the summary posts have been arranged by date.
First time here?
Completed projects from year 1
Completed projects from year 2
Completed projects from year 3
Completed projects from year 4
Completed projects from year 5
Completed projects from year 6
Completed projects from year 7
Completed projects from year 8
Completed projects from year 9
Completed projects from year 10
Completed projects from year 11
Disclaimer for http://24hourengineer.blogspot.com and 24HourEngineer.com
This disclaimer must be intact and whole. This disclaimer must be included if a project is distributed.
All information on this blog, or linked by this blog, is not to be taken as advice or solicitation. Anyone attempting to replicate, in whole or in part, is responsible for the outcome and procedure. Any loss of functionality, money, property, or similar, is the responsibility of those involved in the replication.
All digital communication regarding the email address 24hourengineer@gmail.com becomes the intellectual property of Brian McEvoy. Any information contained within these messages may be distributed or retained at the discretion of Brian McEvoy. Any email sent to this address, or any email account owned by Brian McEvoy, cannot be used to claim property or assets.
Comments to the blog may be utilized or erased at the discretion of the owner. No one posting may claim property or assets based on their post.
This blog, including pictures and text, is copyright to Brian McEvoy.
 |
| Cutaway view of spinner model |
I printed the REV20 spinner and installed the brass bolts and wire loops. The magnets fit right into their spots, and I sandwiched the halves together and added nuts to secure everything.
 |
| Beautiful spinner |
I tried hand-bending long wire loops that would reach from the spinner's center to an axle holder with wire guides at the top. It was too difficult to shape the wires correctly by hand, so I stopped before something else broke.
 |
| Mangled wire loops |

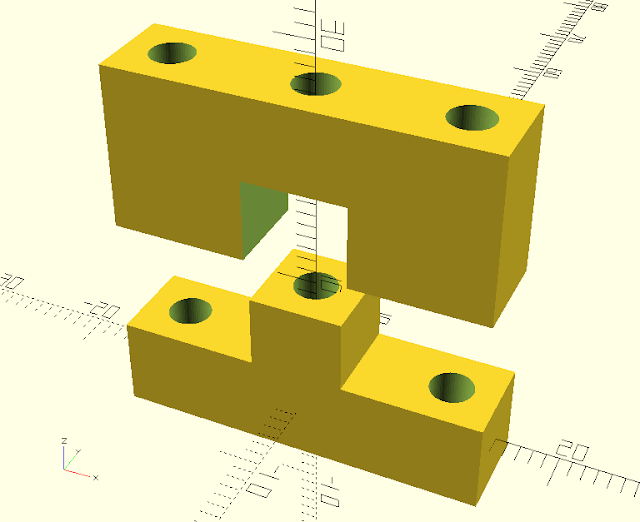

I made a wire-bending jig to facilitate the next steps. If it works, I can add more advanced features in subsequent iterations.
 |
