I modeled the axle holder springs, which were the lynchpin of this project. I started with basic shapes, which I am sure I will update in future versions. I programmed an "exploding" effect to show the parts and how they will fit together.
The magnet fitted snugly in the loop, but the thread pattern on the shell and cap did not mate. I will update the thread pattern, and I need to change the springs, which were too thick to flex.
I added a viewing window to the shell for when I install a spinner. I made the spring half as thick as before, which made it shorter and should have made it more pliant.
The springs were 0.5mm thick and had gaps the same size, but they were too small to print reliably. The plastic fused with the nearby parts and was unusable as a spring.
I stopped trying to make complex spring structures in OpenSCAD and used QCAD to draft 2D shapes and extrude them as 3D springs. The process worked well, and I produced several variations with different thicknesses and spacings.
I printed four spring variations and selected a few to install in a case with axle pins and a magnet spinner. Unfortunately, the springs didn't prevent the axle pins from pointing off the sides, causing the spinner to sit unevenly.
The rest of the summary posts have been arranged by date.
First time here?
Completed projects from year 1
Completed projects from year 2
Completed projects from year 3
Completed projects from year 4
Completed projects from year 5
Completed projects from year 6
Completed projects from year 7
Completed projects from year 8
Completed projects from year 9
Completed projects from year 10
Completed projects from year 11
Disclaimer for http://24hourengineer.blogspot.com and 24HourEngineer.com
This disclaimer must be intact and whole. This disclaimer must be included if a project is distributed.
All information on this blog, or linked by this blog, is not to be taken as advice or solicitation. Anyone attempting to replicate, in whole or in part, is responsible for the outcome and procedure. Any loss of functionality, money, property, or similar, is the responsibility of those involved in the replication.
All digital communication regarding the email address 24hourengineer@gmail.com becomes the intellectual property of Brian McEvoy. Any information contained within these messages may be distributed or retained at the discretion of Brian McEvoy. Any email sent to this address, or any email account owned by Brian McEvoy, cannot be used to claim property or assets.
Comments to the blog may be utilized or erased at the discretion of the owner. No one posting may claim property or assets based on their post.
This blog, including pictures and text, is copyright to Brian McEvoy.
 |
| All the parts for the first print |
The magnet fitted snugly in the loop, but the thread pattern on the shell and cap did not mate. I will update the thread pattern, and I need to change the springs, which were too thick to flex.
 |
| Printed parts and hardware components |
I added a viewing window to the shell for when I install a spinner. I made the spring half as thick as before, which made it shorter and should have made it more pliant.
 |
| Viewing window and thin spring |

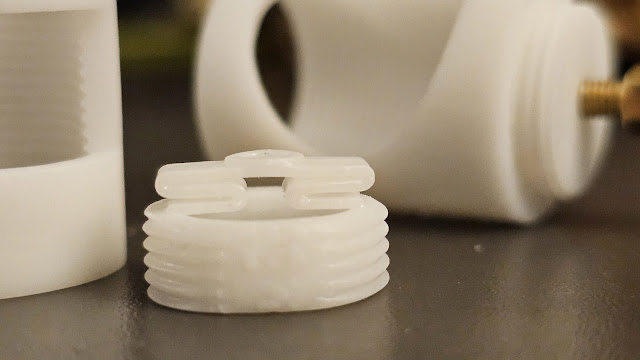

The springs were 0.5mm thick and had gaps the same size, but they were too small to print reliably. The plastic fused with the nearby parts and was unusable as a spring.
 |
| Extra small is too small |
I stopped trying to make complex spring structures in OpenSCAD and used QCAD to draft 2D shapes and extrude them as 3D springs. The process worked well, and I produced several variations with different thicknesses and spacings.
 |
| Complex springs from QCAD |
I printed four spring variations and selected a few to install in a case with axle pins and a magnet spinner. Unfortunately, the springs didn't prevent the axle pins from pointing off the sides, causing the spinner to sit unevenly.
 |
| Spring assortment |
