2024-10-31 (Th) OLEDHoleMount The nut was the problem

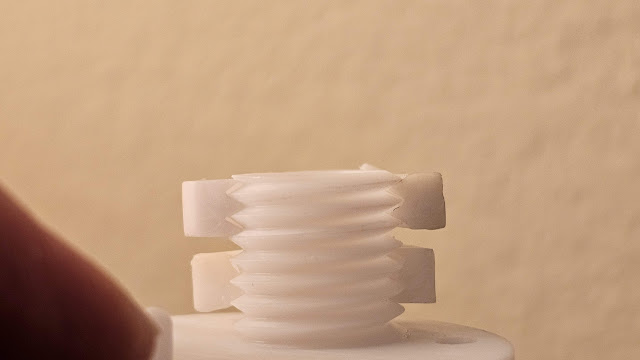

Whenever I printed a screen mount and nut, I worked hard to make the nut fit onto the stalk by working it back and forth to wear away the rough edges, but they were always too snug. I felt plastic crack on the thin stalks several times, but nothing catastrophically failed until a nut broke in half when I used a metal wrench. I placed the shattered halves onto the tube and saw that the threads did not align. The thread-per-inch factor differed for each, so they were only partially compatible.

The threads do not match

I used this clue to look at my code and made a cutaway view to check the area where the threads intersected, and they did not mesh. I played with the variables and found that changing the "tolerance" variable I sent to the library changed the angle on the threads but ONLY in the internal thread iteration, not the threaded post. I hardcoded the "pitch" on both, which forced the components to align. I printed some new nuts to confirm, and they fit.

I was surprised to find that the printed parts had significant play. I had the tolerance up so high that I introduced a significant gap, but my printer was capable of printing with a better tolerance. The next prints will have nuts that fit well.

Compatible thread code

GitHub files for OLEDHoleMount.
