I struggled to install a potentiometer near the conical lever because the plastic was so thick. I also installed a USB-C port and two MIDI ports near the back, where I can easily plug into them while playing.
I dug through the largest connectors inside the guitar controller and decoded which wires corresponded to which buttons. I figured out the connections on the headphone jack, which were different from the three connections I assumed.
I drafted the schematic for the new guitar. I should have used CAD for the first schematic, so I would only need to redraw a few things, but I slacked early on. The new drawing is nearly complete except for the synthesizer and the second IO expander.
I added the MIDI synthesizer and speakers and completed the second IO expander's connection list. I should have planned the layout better from the start because I created a very wide drawing that would not print well.
My old apartment building had a "Maker Space," an empty room with sturdy tables. I went there to solder, but my new apartment does not have such an amenity. My solution was to bring a wheeled cart with a battery-powered soldering iron into a stairwell and sit on a folding stool. I ordered a 12V fume extractor because I sat under a building-wide smoke detector.
I removed the guitar's motherboard and all the cabling. I carefully removed the wire connectors to preserve as much copper as possible. Lastly, I trimmed and soldered each conductor.
The rest of the summary posts have been arranged by date.
First time here?
Completed projects from year 1
Completed projects from year 2
Completed projects from year 3
Completed projects from year 4
Completed projects from year 5
Completed projects from year 6
Completed projects from year 7
Completed projects from year 8
Completed projects from year 9
Completed projects from year 10
Completed projects from year 11
Disclaimer for http://24hourengineer.blogspot.com and 24HourEngineer.com
This disclaimer must be intact and whole. This disclaimer must be included if a project is distributed.
All information on this blog, or linked by this blog, is not to be taken as advice or solicitation. Anyone attempting to replicate, in whole or in part, is responsible for the outcome and procedure. Any loss of functionality, money, property, or similar, is the responsibility of those involved in the replication.
All digital communication regarding the email address 24hourengineer@gmail.com becomes the intellectual property of Brian McEvoy. Any information contained within these messages may be distributed or retained at the discretion of Brian McEvoy. Any email sent to this address, or any email account owned by Brian McEvoy, cannot be used to claim property or assets.
Comments to the blog may be utilized or erased at the discretion of the owner. No one posting may claim property or assets based on their post.
This blog, including pictures and text, is copyright to Brian McEvoy.
 |
| Black potentiometer, USB-C port, and two MIDI DIN ports |
I dug through the largest connectors inside the guitar controller and decoded which wires corresponded to which buttons. I figured out the connections on the headphone jack, which were different from the three connections I assumed.
 |
| Headphone PCB description |
I drafted the schematic for the new guitar. I should have used CAD for the first schematic, so I would only need to redraw a few things, but I slacked early on. The new drawing is nearly complete except for the synthesizer and the second IO expander.
 |
| EWC_Noodle schematic. Missing a few things |

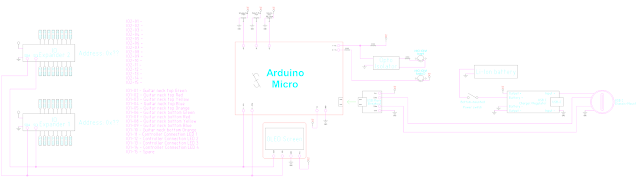

I added the MIDI synthesizer and speakers and completed the second IO expander's connection list. I should have planned the layout better from the start because I created a very wide drawing that would not print well.
 |
